This section will provide specific answers to questions related to the relative position of vertical drains to other solutions

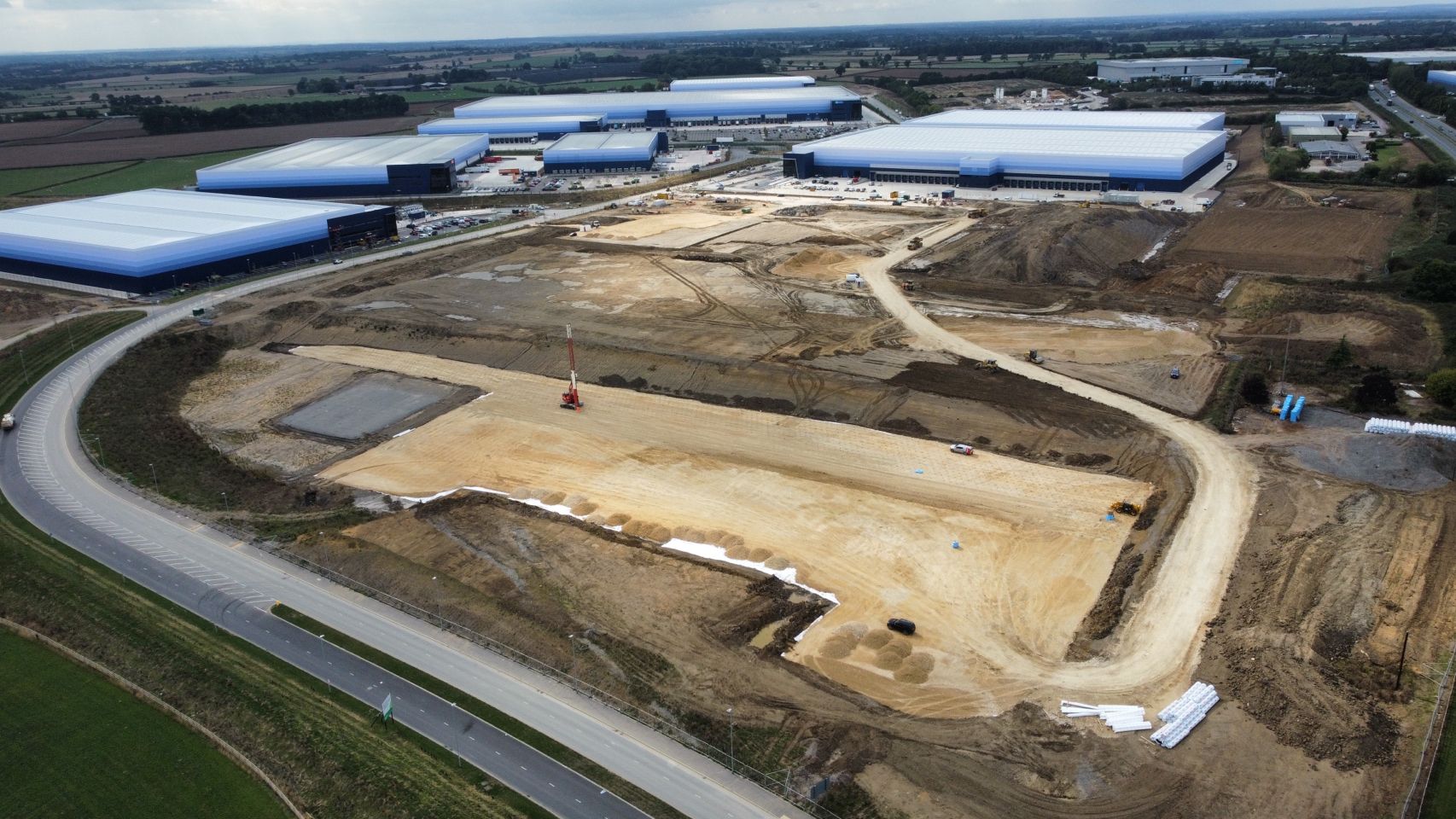

Magna Park UK Sep 2022 01

Vertical Drains vs Stone Columns: which technique should be selected?

Vertical Drains and Stone Columns are both used to improve soft soils, but they address different project requirements and work through different improvement mechanisms.

Vertical Drains accelerate the consolidation of compressible soils by shortening the drainage path for excess pore water pressures. They are particularly effective where long-term settlement control is the primary objective and sufficient preload time is available. The technique is applied on any size project area where project economics favour a consolidation-based ground improvement solution.

Stone Columns improve the soil through reinforcement and densification. In addition to providing drainage, they increase bearing capacity, reduce settlements through load sharing and improve overall ground stiffness. They are therefore often selected when higher bearing capacities are required or when construction schedules do not allow sufficient time for consolidation under preload.

In very soft soils, Stone Columns may require geotextile encasement to provide adequate confinement and ensure the desired performance. They are generally more suited to soils with sufficient lateral support, although specialised solutions are available for very soft ground conditions.

The selection between Vertical Drains and Stone Columns depends on a range of project-specific factors, including:

• Soil conditions and compressibility
• Required bearing capacity
• Acceptable residual settlements
• Available construction time
• Stability requirements
• Treatment area size
• Overall project economics

For large-scale developments on soft soils where time is available for consolidation, Vertical Drains often provide the most economical solution. For heavily loaded structures or projects with stringent settlement and bearing capacity requirements, Stone Columns may provide technical advantages. In many projects, multiple ground improvement techniques are evaluated during the design phase to identify the most economical and technically appropriate solution. Reach out to our specialist if you would need advise or in need of a second opinion.

Read more about the installation of vertical drains
Cofra Read more about our ability to install stone columns
Get in contact with our specialists
Return to the general FAQ page
Singapore Tuas

Vertical Drains vs Deep Soil Mixing: which method is more suitable?

Vertical Drains and Deep Soil Mixing (DSM) are both used to improve soft soils, but they address different geotechnical challenges and project requirements.

Vertical Drains improve the behaviour of the existing soil by accelerating consolidation. Excess pore water pressures dissipate more quickly, allowing settlements and strength gain to occur within practical construction schedules. The technique is commonly applied on any size projectareas where settlement control is the primary objective and sufficient time is available for preloading.

Deep Soil Mixing (DSM) improves the soil by mechanically mixing binders, such as cement or lime, into the ground to form soil-cement columns. These columns significantly increase the strength and stiffness of the soil and can provide immediate improvement after curing. DSM is therefore often selected where bearing capacity, stability or deformation control are critical design considerations.

The selection between Vertical Drains and DSM depends on several factors, including:

• Soil conditions and stratigraphy
• Required bearing capacity
• Acceptable residual settlements
• Construction schedule
• Stability requirements
• Environmental considerations
• Treatment area size
• Overall project economics

For any size treatment areas with moderate loading conditions, Vertical Drains often provide a highly economical solution. DSM may be more attractive where immediate strength gain is required, where stability is critical, where high loads are applied, or where very stringent settlement and deformation criteria must be met. DSM zone are oftne combined with PVD, where the DSM zones are installed at the edges.

In practice, both techniques may be considered during the design phase and compared based on technical performance, construction schedule and cost. The most suitable solution is ultimately determined by the project-specific requirements and ground conditions.

Read more about the installation of vertical drains
Get in contact with our specialists
Return to the general FAQ page
Ijburg (4C9A8049)

Can Vertical Drains replace piles?

Generally, no.

Vertical Drains and piles serve different purposes. Vertical Drains improve soft soils by accelerating consolidation and increasing soil strength over time, while piles transfer structural loads to deeper competent soil layers or rock.

As a result, Vertical Drains cannot simply replace piles for heavily loaded structures or projects with stringent settlement and differential settlement requirements. In these situations, piles, rigid inclusions, Deep Soil Mixing (DSM) or other reinforcement techniques are often required to provide the necessary support and stiffness.

However, Vertical Drains can sometimes reduce settlements sufficiently to make shallow foundations, embankments, storage areas, parking facilities or slabs-on-grade feasible where they would otherwise not be considered. Vertical Drains may also be used to improve the surrounding area of a piled structure, reducing settlements of roads, pavements, loading yards and utility corridors.

Whether Vertical Drains can reduce or eliminate the need for piles depends on the soil conditions, loading requirements, allowable settlements, construction schedule and project economics. A project-specific geotechnical assessment is therefore required to determine the most suitable solution.

Read more about the installation of vertical drains
Get in contact with our specialists
Return to the general FAQ page
DJI 0354

What is the biggest advantage of Vertical Drains compared with other soft soil improvement methods?

The principal advantage of Vertical Drains is their ability to improve small to very large areas of soft ground in an economical and scalable manner.

Unlike many other ground improvement methods, Vertical Drains do not require large quantities of imported aggregate, extensive excavation or the installation of structural elements within the soil. Instead, they work with the natural consolidation process by accelerating the dissipation of excess pore water pressures and allowing the existing soil to gain strength over time.

As a result, Vertical Drains can often be installed rapidly and cost-effectively across treatment areas ranging from a hunderd square meters to hundreds of hectares. This makes them particularly attractive for infrastructure projects, land reclamations, ports, airports, industrial developments and flood protection works.

Another important advantage is their flexibility. The drain spacing, surcharge programme and construction sequence can be adjusted to meet specific project requirements, allowing an optimal balance between construction time, residual settlement and project costs.

For soft soil improvement projects, this combination of scalability, predictability, simplicity and cost-efficiency is often the primary reason why Vertical Drains are selected over alternative ground improvement techniques.

Read more about the installation of vertical drains
Get in contact with our specialists
Return to the general FAQ page
