Why are vertical drains often combined with surcharge loading?

Vertical drains provide an artificial drainage path for excess pore water, but they do not generate the load required to compress the soil. In other words, vertical drains accelerate consolidation, but they do not cause consolidation by themselves.

To initiate consolidation, an increase in effective stress is required. In most projects, this load is provided by the future construction and by placing fill on the site. The fill may consist of the net raise required to achieve the final ground level, settlement compensation to account for the expected volume reduction of the soft soil, and an additional surcharge load.

The purpose of the surcharge is to temporarily apply a higher load than will be present in the final situation. This generates additional pore water pressures, which subsequently dissipate through the vertical drains. As a result, settlements occur more rapidly and a larger portion of the settlement takes place before the construction of the permanent works. The process also increases the strength of the subsoil, allowing construction activities to progress sooner and often more safely.

For many large infrastructure, port, airport and land reclamation projects, the combination of vertical drains and surcharge loading remains one of the most economical and most widely applied ground improvement solutions.

Read more about the way the vertical drains are installed
Read more about how we can use vacuum consolidation to reduce the surcharge levels
Get in contact with our specialists
Return to the general FAQ page

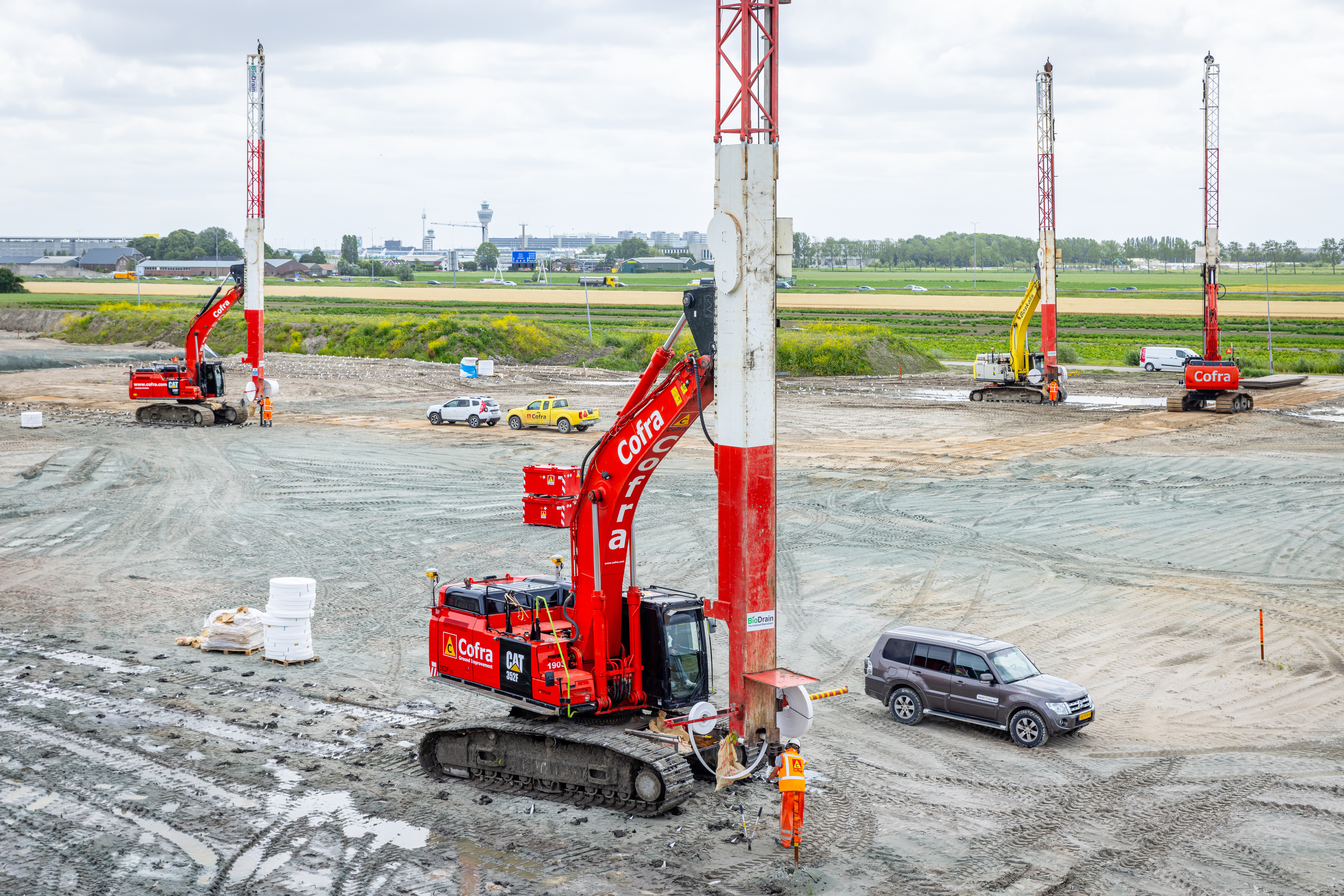

Badhoevedorp (4C9A0280)

How is the spacing of vertical drains determined?

Drain spacing is one of the most important design parameters in a vertical drain project. The optimum spacing is determined through geotechnical design calculations and depends on both the soil conditions and the project requirements. It is calculated either in a triangular or in a square pattern.

The spacing is typically calculated using:

• Soil permeability and compressibility
• Thickness of the compressible layers
• Available surcharge load or vacuum pressure
• Required consolidation period
• Target degree of consolidation
• Residual settlement requirements
• Construction schedule
• Overall project economics

In general, a closer drain spacing results in faster consolidation because excess pore water has a shorter distance to travel before reaching a drain. However, closer spacing also increases the number of drains, installation quantities and project costs. Note that a drain spacing below 0.85m is not practical as theory and practice start to deviate. The consolidation in the field will be slower than calculated. this is related to the smear effect induced by the installation of the vertical drain.

In some cases, a tighter spacing may reduce the required surcharge height or shorten the construction schedule, creating additional savings elsewhere in the project. The optimum spacing is therefore typically determined through an economic balance between drain installation costs, surcharge requirements and the available time for consolidation. Detailed consolidation analyses are commonly performed to identify the most efficient and cost-effective solution for a specific project.

Get in contact with our specialists
Return to the general FAQ page

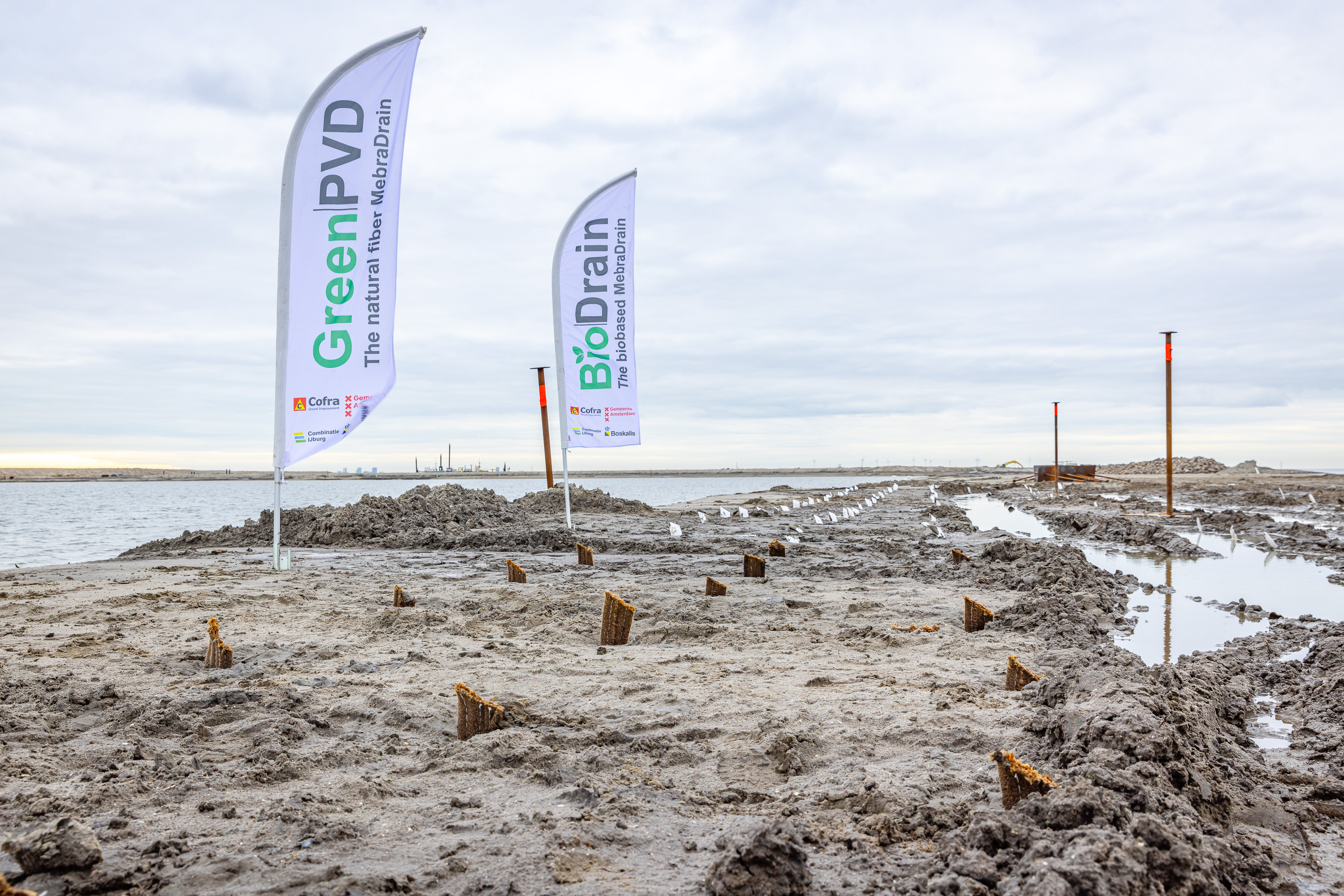

Ijburg (4C9A8046)

How is the performance of vertical drains verified?

Ground improvement projects involving vertical drains are commonly monitored using geotechnical instrumentation. The most widely used monitoring tool is a settlement plate. A settlement plate consists of a base plate installed on the original ground surface and connected to an extension rod that is lengthened as fill is placed. By regularly measuring the elevation of the rod, the progress of settlement can be monitored throughout the consolidation period.

Settlement measurements are typically taken every few days during the early stages of loading and at longer intervals as the rate of settlement decreases. The collected data allows engineers to assess the progress of consolidation, estimate future settlements and determine when the required degree of consolidation has been achieved.

Cofra applies advanced observational methods in which the measured performance is at intervals compared with the design predictions. This allows us to keep track of the consolidation behaviour and expected residual settlements throughout the project and review the schedules and potential need for early surcharge removal or ultimately identify the need for additional surcharge at an early stage. Depending on the project requirements, established more simple interpretation methods such as Asaoka and Hyperbolic analyses may also be used to estimate the degree of consolidation.

In addition to settlement plates, monitoring programmes may include:

• Deep settlement gauges
• Piezometers
• Inclinometers

Piezometers require particular attention when used on vertical drain projects. The measured pore water pressure may vary depending on the location of the instrument relative to the drain pattern. Consolidation generally progresses faster near a drain than at the midpoint between adjacent drains. As a result, the interpretation of piezometer data should always be performed using engineering judgement as other factors like perched waterlevels in the fill, the use of inferior PVD or its location could have an effect. We therefore always compare the results to settlement plate measurements to determine the average degree of consolidation.

Get in contact with our specialists
Return to the general FAQ page
Badhoevedorp (4C9A0228)

Can vertical drains be installed through intermediate sand layers?

Yes, in many cases vertical drains can be successfully installed through intermediate sand layers. However, the feasibility depends on factors such as the thickness of the sand layer, its relative density and the required installation depth.

Cofra operates a range of installation rigs with different push capacities to suit varying ground conditions. This includes some of the world's most powerful vertical drain installation equipment, capable of penetrating dense intermediate layers that may not be accessible using standard equipment. In certain situations, alternative installation methods such as predrilling may provide a more practical or economical solution.

Intermediate sand layers should always be evaluated as part of the geotechnical design and installation assessment. If you are unsure whether an intermediate sand layer could affect the installation or performance of a vertical drain system, Cofra can review the available CPTs, borehole logs and project requirements to assess the feasibility, risks and most suitable installation method.

Get in contact with our specialists
Return to the general FAQ page
Ijburg (4C9A8049)

What challenges can affect vertical drain performance?

The performance of a vertical drain system depends on several factors, including the quality of the drain itself, the drainage conditions, the installation process and the construction sequence.

One important factor is the discharge capacity of the vertical drain. The drain must be capable of transporting the expected water flow throughout the consolidation period, including under high settlement conditions. A well-designed drain should maintain sufficient discharge capacity with a minimal hydraulic gradient. For this reason, Cofra applies strict quality requirements and selects drain types that are fit for purpose for the specific project conditions.

Installation quality is another important factor influencing vertical drain performance. The installation process should ensure that the design depth is consistently reached and that the drains are installed within the specified installation tolerances. Particular attention should be paid to avoiding excessive penetration beyond the intended depth, as this may create unwanted hydraulic connections between aquifers or soil layers with different groundwater conditions. Similarly, insufficient penetration may leave sections of the compressible soil profile untreated, reducing the effectiveness of the ground improvement system. Proper installation control and continuous monitoring of installation records are therefore essential to ensure that the installed drain pattern performs as intended.

The performance of the drainage blanket or drainage layer is equally important. Water discharged from the vertical drains must be able to leave the system efficiently. A well-draining sand layer or drainage blanket is typically required. Poor drainage conditions may result in elevated groundwater levels, slower pore pressure dissipation and delays in the consolidation process. In addition, the drainage layer often serves as the working platform for the installation equipment and therefore requires sufficient bearing capacity.

Construction control is another critical aspect. Monitoring data should be reviewed regularly to verify that the observed settlement and pore pressure response correspond with the design assumptions. Placing fill too rapidly may lead to instability, excessive horizontal deformations or the development of shear planes within the soft soil.

In extreme cases, excessive ground movements may damage the installed drains. If a shear plane develops, individual drains may become distorted or severed, reducing their effectiveness and potentially requiring additional ground improvement measures.

For this reason, successful vertical drain projects rely not only on the drain product itself, but also on proper design, quality installation, adequate drainage provisions and careful monitoring during construction.

Learn about the methods we use to make sure the vertical drains are installed as they should
Read more about our sustainable vertical drain materials
Get in contact with our specialists
Return to the general FAQ page

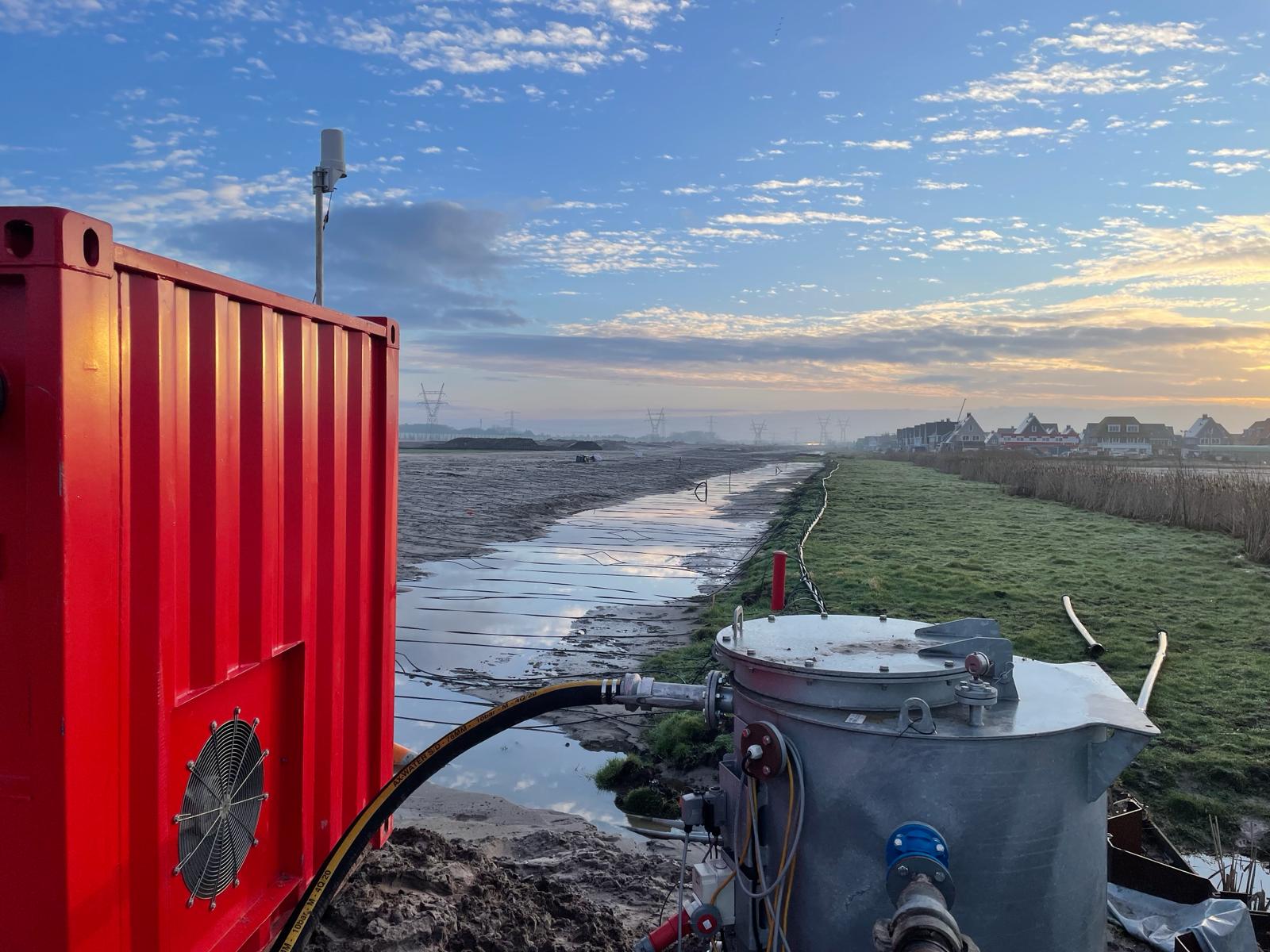

Whatsapp Image 2024 02 12 At 12.36.00 1Aa83eaf

What is the difference between vertical drains and vacuum consolidation?

Vertical drains are a key component of both conventional surcharge projects and vacuum consolidation systems. In both cases, the drains provide a drainage path that allows excess pore water pressures to dissipate and the soil to consolidate.

In a conventional surcharge project, consolidation is driven by the placement of fill at the ground surface. The additional load generates excess pore water pressures, which gradually dissipate through the vertical drains. The drains themselves do not create any load and act as a passive drainage system.

In a vacuum consolidation project, additional effective stress is generated by reducing the pore water pressure within the drainage system using vacuum pumps. Because the drain network is filled with water and sealed from the atmosphere, the applied vacuum is transferred throughout the drainage system and into the soil. This reduction in pore water pressure increases the effective stress acting on the soil skeleton, accelerating consolidation without the need for excessive surcharge loading.

Vacuum consolidation can be particularly advantageous where high surcharge embankments are impractical, where stability or lateral movements are critical, or where accelerated consolidation is required. The selection between surcharge loading, vacuum consolidation, or a combination of both depends on the soil conditions, project constraints and performance requirements.

As vacuum consolidation requires specialised design, monitoring and execution, a project-specific assessment is always recommended. Cofra has extensive experience with both conventional vertical drain projects and advanced vacuum consolidation systems and can assist in identifying the most suitable solution for your project.

Read more about vertical drains
Read more on vacuum consolidation
Get in contact with our specialists
Return to the general FAQ page

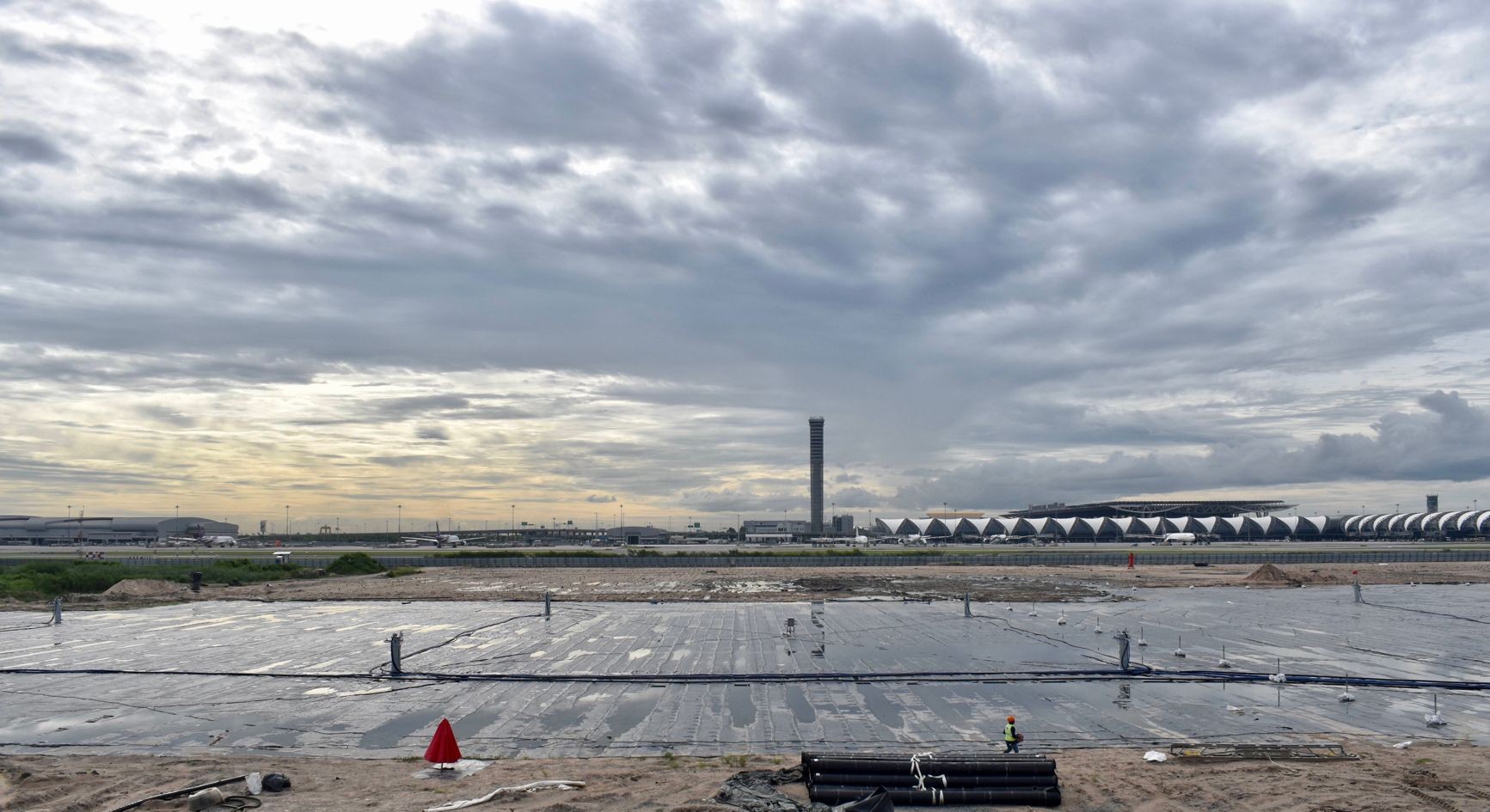

International_cruise_terminal_singapore_7

How do I design for vacuum consolidation?

The geotechnical design of a vacuum consolidation project is, in principle, very similar to the design of a conventional vertical drain project with surcharge loading. The main difference is that part of the applied load is generated by reducing the pore water pressure within the drainage system rather than by placing additional fill.

The first step is to determine the effective vacuum pressure that can be transferred to the soil. This pressure depends on the vacuum generated by the pumps, typically in the range of 80 to 90 kPa, the elevation difference between the pump system and the groundwater level, and any pressure losses within the drainage system. After accounting for these factors, an effective vacuum pressure can be derived.

For consolidation calculations, this effective vacuum pressure can generally be modelled as an equivalent surcharge load. The resulting increase in effective stress accelerates consolidation in the same way as a conventional preload embankment. Standard consolidation analyses can therefore be used to estimate settlement behaviour, consolidation time and residual settlements.

For stability calculations, the vacuum pressure is often not treated as an external driving load in the same manner as a surcharge embankment. Instead, the increased degree of consolidation and corresponding strength gain of the soil are considered in the assessment. In that respect, vacuum consolidation is not a "magic" ground improvement method, but simply a different way of increasing the effective stress within the soil by lowering pore water pressures.

The selection of the most suitable vacuum system depends on factors such as the treatment area, soil profile, groundwater conditions and the presence of permeable sand layers. In particular, intersecting sand layers can make certain vacuum systems less suitable because they may lead to vacuum losses and difficulties in maintaining the required pressure.

As each vacuum consolidation project is highly dependent on the site conditions and the selected vacuum concept, a project-specific assessment is always recommended. Cofra can assist with feasibility studies, vacuum system selection, preliminary design and detailed geotechnical analysis to determine whether vacuum consolidation is a suitable solution for your project.

Learn more about the choices in vacuum consolidation techniques
Get in contact with our specialists
Return to the general FAQ page
1642077754450 (1)

When is vacuum consolidation preferred over conventional surcharge loading?

Vacuum consolidation is typically considered when conventional surcharge loading alone is impractical, uneconomical or creates unacceptable stability risks. Both vacuum preloading and PVD with surcharge aim to accelerate consolidation by increasing the effective stress within the soil, but they achieve this in different ways. Conventional surcharge loading increases the total stress by placing additional fill, whereas vacuum consolidation increases the effective stress by reducing the pore water pressure within the soil.

Vacuum consolidation is often preferred in the following situations:

• When the required surcharge height becomes excessively large
• When the stability of very soft soils limits the allowable fill height and slopes
• When lateral deformations must be minimised near existing infrastructure or property boundaries
• When accelerated consolidation is required within a limited construction period
• When suitable surcharge material is scarce, expensive or difficult to transport
• When environmental or site constraints limit the construction of high embankments

One of the main advantages of vacuum consolidation is that it increases effective stress without adding significant weight to the ground surface. As a result, the risk of bearing failure, excessive lateral movements and instability can often be reduced compared with conventional surcharge loading.

Vacuum consolidation is particularly attractive for very soft clay deposits where settlement control and construction schedules are critical. In many projects, vacuum consolidation is used in combination with a moderate surcharge load, allowing the benefits of both techniques to be utilised. On large projects often a combination is used with vacuum preloading at the edges and PVD with surcharge in the center where there is no stability risk.

However, vacuum consolidation is not suitable for every site. The effectiveness depends on the soil conditions, groundwater regime, presence of permeable sand layers and the ability to maintain the required vacuum pressure throughout the treatment area. For this reason, a project-specific feasibility assessment is always recommended. Feel free to reach out and discuss the posibilities at your site.Cofra can assist with this assessment and identify whether conventional surcharge loading, vacuum consolidation or a combination of both provides the most effective solution for your project.

The most economical solution is often determined by comparing the available surcharge height, project schedule, stability requirements, material availability and installation costs.

Get in contact with our specialists
Learn more about vacuum consolidation and the methods there are to treat your site
Return to the general FAQ page
