FAQ Vertical drains

Application area

This section will provide specific answers to questions related to the application of vertical drains

bouyguesTP-PortBrest-M02-P1-2515_original

Can vertical drains be used offshore?

Yes.

Vertical drains are regularly used for offshore reclamation projects, port developments and marine infrastructure works where soft compressible deposits are present. They can also be installed in areas that are difficult to access with conventional land-based equipment, such as slopes, reclamation edges and rockfill protection zones.
Offshore installation requires specialised equipment, marine working methods and careful quality control procedures to ensure installation accuracy and performance. Depending on the project conditions, several installation methods are available, ranging from installation from floating platforms to specialised equipment operating from floating tracks.

The selection of the most suitable installation method depends on factors such as water depth, soil conditions, required push force, access restrictions and the required installation depth. Early involvement of an experienced contractor can help optimise the installation concept and reduce project risks.
Cofra has extensive experience with both onshore and offshore vertical drain installations and can assist in identifying the most practical and economical solution for your project.

Read more on our special page related to offshore installation of vertical drains
Get in contact with our specialists
Return to the general FAQ page
20200429 WGIII (2)

Can Vertical Drains be used to improve peat soils?

Yes.

Peat is one of the most common soil types treated using Vertical Drains. Due to its extremely high compressibility and low permeability, natural consolidation of peat deposits can take many years or even decades. Vertical Drains significantly shorten the drainage path and accelerate the dissipation of excess pore water pressures, allowing settlements and strength gain to occur within practical construction schedules.

Peat deposits are often characterised by very low bearing capacities. As a result, careful construction of the working platform is essential before installation works commence. Depending on the soil conditions, a working platform of sufficient thickness, often 1 meter, may be required to safely support the installation equipment and construction traffic.

Preloading of peat can also be challenging because of stability limitations. Fill placement is often carried out in stages to allow the soil to gain strength as consolidation progresses. In some cases, high-strength geosynthetics may be used to improve stability and facilitate construction. Stability assessments should consider the relevant failure mechanisms, including rotational, non-rotational instability and squeezing behaviour, to ensure a safe and economical design.

When Vertical Drains are combined with preload embankments or vacuum consolidation systems, substantial settlements can be induced before construction begins. This helps to reduce post-construction settlements and improve the long-term performance of the development.

The design of peat improvement schemes requires careful consideration of creep behaviour, secondary compression and residual settlement requirements. With a properly designed ground improvement programme, residual settlements can often be reduced to acceptable levels for residential, infrastructure and industrial developments.

Cofra has extensive experience with peat improvement projects in the Netherlands and internationally and can assist with feasibility assessments, design optimisation and construction support.

Read more on the application of vertical drains
Read more about vacuum consolidation
Get in contact with our specialists
Return to the general FAQ page
Magna Park UK Sep 2022 01

Are Vertical Drains suitable for warehouse developments?

Yes, but their suitability depends strongly on the settlement requirements of the development.

Modern warehouse and logistics facilities often impose stringent requirements on total and differential settlements, particularly for floor slabs, automated storage systems and heavily loaded operational areas. In many of these projects, foundation solutions such as piles, rigid inclusions or other reinforcement techniques are preferred because they provide immediate stiffness and settlement control.

Vertical Drains are generally more attractive where the underlying soils are moderately compressible, sufficient consolidation time is available and the residual settlement requirements can be achieved through preloading. They are therefore often considered for developments on relatively stiff clays or where a moderate amount of settlement can be tolerated.

Even when the warehouse structure itself is supported by piles or ground reinforcement elements, Vertical Drains can still provide an economical solution for preparing surrounding infrastructure such as parking areas, loading yards, roads and utility corridors.

The most suitable solution depends on the soil conditions, loading requirements, construction schedule and allowable residual settlements. For many warehouse developments, a comparison between Vertical Drains, rigid inclusions, stone columns and piled solutions is required to determine the most economical and technically appropriate ground improvement strategy.

Read more about vertical drains
Read more on our special application page about construction
Get in contact with our specialists
Return to the general FAQ page
19032011-5K9B5140

Are Vertical Drains suitable for road and highway embankments?

Yes.

Road, highway and railway embankments are among the most common applications of Vertical Drains worldwide. These projects frequently cross soft clay and peat deposits where the natural consolidation period would be incompatible with the required construction schedule.

Vertical Drains accelerate the consolidation process and increase the rate at which the subsoil gains strength. This allows embankments to be constructed more rapidly and often enables higher fill placement rates while maintaining stability.

The technique is attractive for any size linear infrastructure projects, where areas of soft ground require treatment in an economical manner. By inducing a substantial portion of the settlement before the infrastructure is put into service, Vertical Drains help reduce post-construction settlements and improve long-term performance.

Vertical Drains are commonly combined with staged construction, surcharge loading and geotechnical instrumentation such as settlement plates, piezometers and inclinometers. Monitoring data is used to verify the performance of the ground improvement works and to optimise the filling schedule during construction.

The suitability of Vertical Drains depends on the soil profile, settlement requirements, available construction time and stability constraints. For very soft soils, additional measures such as geosynthetic reinforcement, vacuum consolidation or other ground improvement techniques may also be considered.

Read more about the installation of vertical drains
Have a look at our special page about the ground improvement for infrastructure
Get in contact with our specialists
Return to the general FAQ page
DJI 0354

Why are Vertical Drains widely used for airports and ports?

Large airport and port developments often involve extensive areas to be developed. When these developments are constructed in delta regions or in the near shore areas, there is often soft compressible soil present in the subsoil. When these materials are loaded by the runways, terminals, container yards, warehouses or infrastructure, significant settlements may occur if no ground improvement measures are taken.

Vertical Drains provide here a practical and in most cases an economical solution for accelerating consolidation over the treatment areas. By shortening the drainage path for excess pore water, they allow settlements and strength gain to occur within practical project schedules. This helps to reduce post-construction settlements and enables earlier construction of permanent infrastructure.

The technique is particularly attractive for airports and ports because treatment areas often extend over tens or even hundreds of hectares. Vertical Drains can be installed at high production rates and are capable of treating large areas in a cost-effective and predictable manner.

Vertical Drains are frequently combined with surcharge loading or vacuum consolidation to achieve the required degree of consolidation before construction begins. This allows developers to better manage construction schedules while maintaining control over long-term settlement performance.

As a result, Vertical Drains have become one of the most widely adopted ground improvement solutions for major airport and port developments worldwide and have been successfully applied on many of the world's largest reclamation and expansion projects.

Read more on the installation of vertical drains
Read more on our application for infrastructure
Get in contact with our specialists
Return to the general FAQ page
HCR1

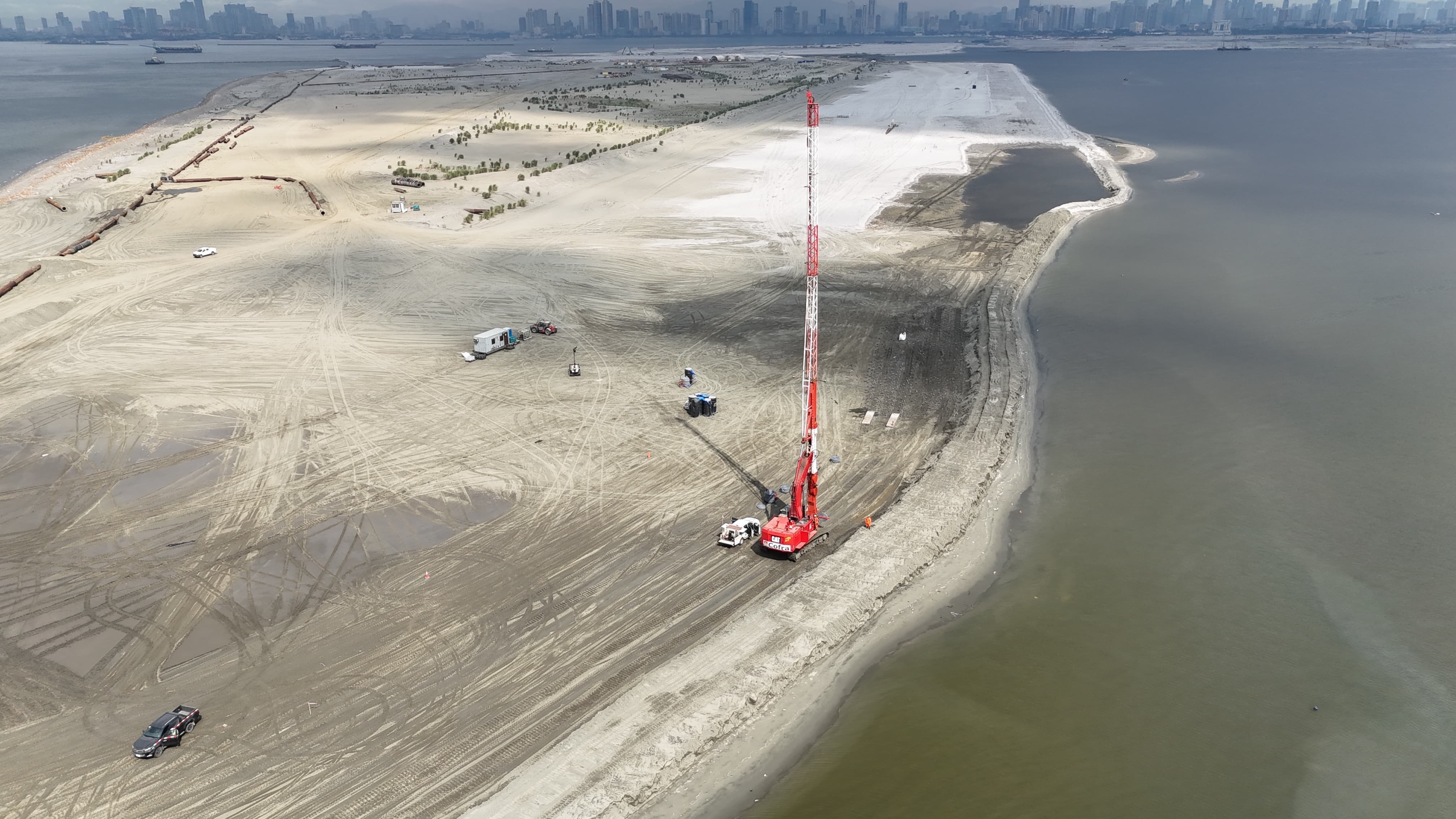

Why are Vertical Drains widely used for land reclamation projects?

Land reclamation projects often involve hydraulically placed fills over soft marine or estuarine deposits. When these soft soils are loaded by the reclamation fill, significant settlements and stability challenges may occur.

Vertical Drains provide an economical method to accelerate consolidation across very large treatment areas. By shortening the drainage path for excess pore water, they allow settlements and strength gain to occur within practical project schedules. This enables earlier construction of infrastructure, buildings and operational areas.

The technique is particularly attractive for port expansions, airport developments and industrial reclamations, where treatment areas may cover hundreds of hectares and ground improvement must be performed efficiently and at high production rates.

Vertical Drains are often combined with surcharge loading or vacuum consolidation to achieve the required degree of consolidation before construction of the permanent works. The resulting reduction in post-construction settlements helps improve the long-term performance of the development.

Many of the world's largest reclamation projects on soft soils have used Vertical Drains as a key component of their ground improvement strategy due to their scalability, cost-effectiveness and proven performance in soft soil conditions.

Read more about the installation of vertical drains
Get in contact with our specialists
Return to the general FAQ page
