FAQ compaction

Understanding Compaction

This section will provide specific answers to general questions related to compaction

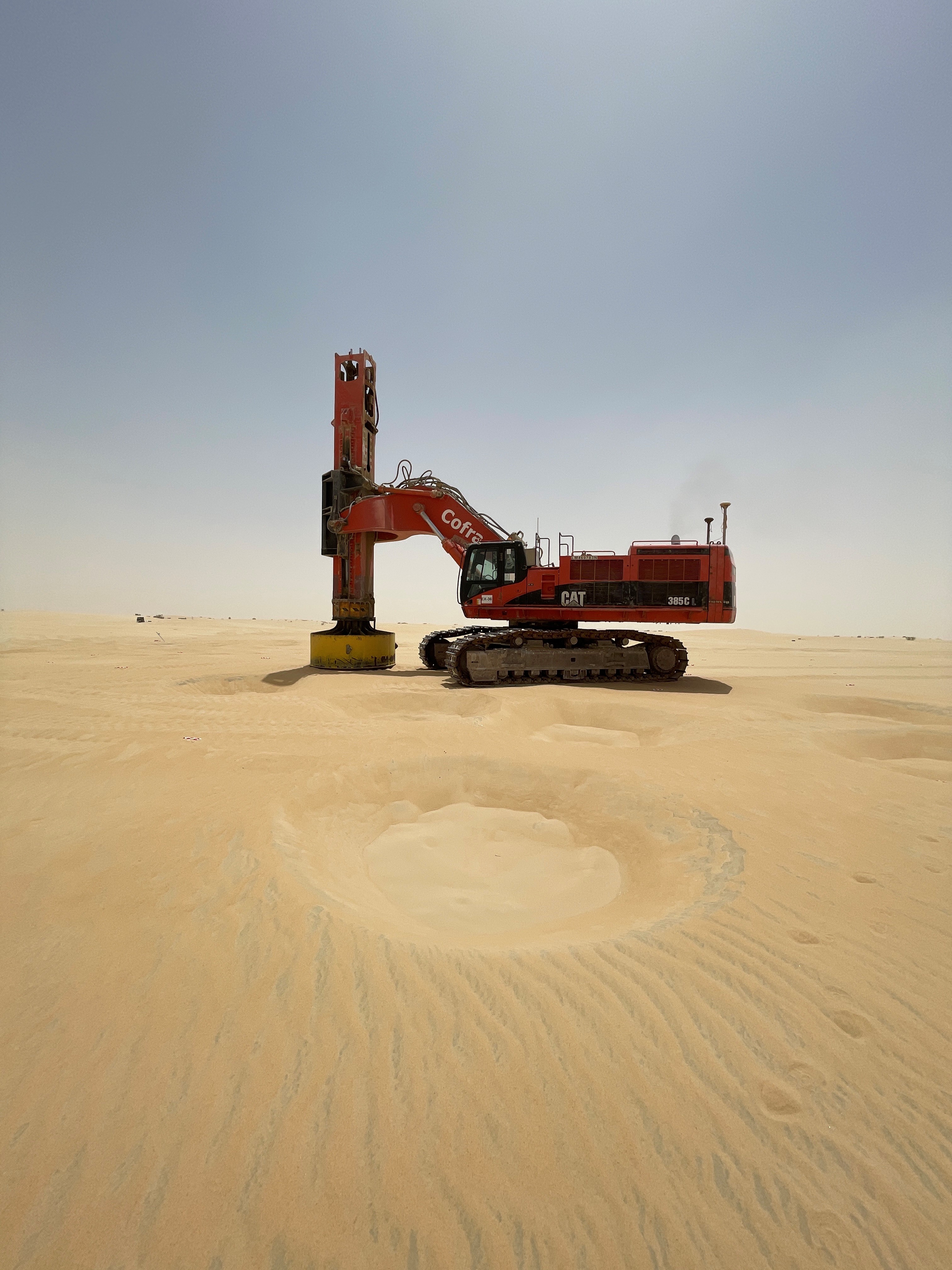

CAT385C Jafourah (2)

What is compaction or ground densification?

Ground densification is a ground improvement process in which energy is introduced into loose granular soils to rearrange the soil particles into a denser configuration. Depending on the technique, this energy may be applied through vibrations, repeated impacts or a combination of both. The resulting shear waves cause the particles to move into a more stable packing arrangement, increasing the density of the soil.

The primary objectives of ground densification are to increase bearing capacity, reduce settlements and improve the overall engineering behaviour of the ground. In seismic regions, densification can also be used to reduce the susceptibility of loose sandy soils to liquefaction.

Ground densification is typically applied to loose sands, hydraulic fills and granular reclamation materials where the soil has sufficient permeability to allow particle rearrangement during treatment. Depending on the soil conditions and project requirements, a variety of compaction techniques can be used, including Cofra Dynamic Compaction (CDC), Vibro Compaction (CVC) and Rapid Compaction (CRC).

A common misconception is that all ground improvement techniques work in the same way. Consolidation techniques are generally applied to soft cohesive soils such as clay and peat and rely on the dissipation of excess pore water pressures over a period of time. Densification techniques, on the other hand, are typically applied to granular materials such as sands and reclamation fills and improve the soil directly through vibration and impact energy. As a result, the improvement is often achieved much faster than with consolidation-based techniques.

Selecting the correct improvement mechanism is often the first step towards an economical and successful ground improvement solution.

Ground densification is widely used for ports, airports, industrial developments, warehouse platforms, land reclamations and infrastructure projects where large areas of loose granular soils require improvement before construction can begin.

Read more about Cofra Dynamic Compaction
Read more about Vibro Compaction
Return to the knowledge center Compaction

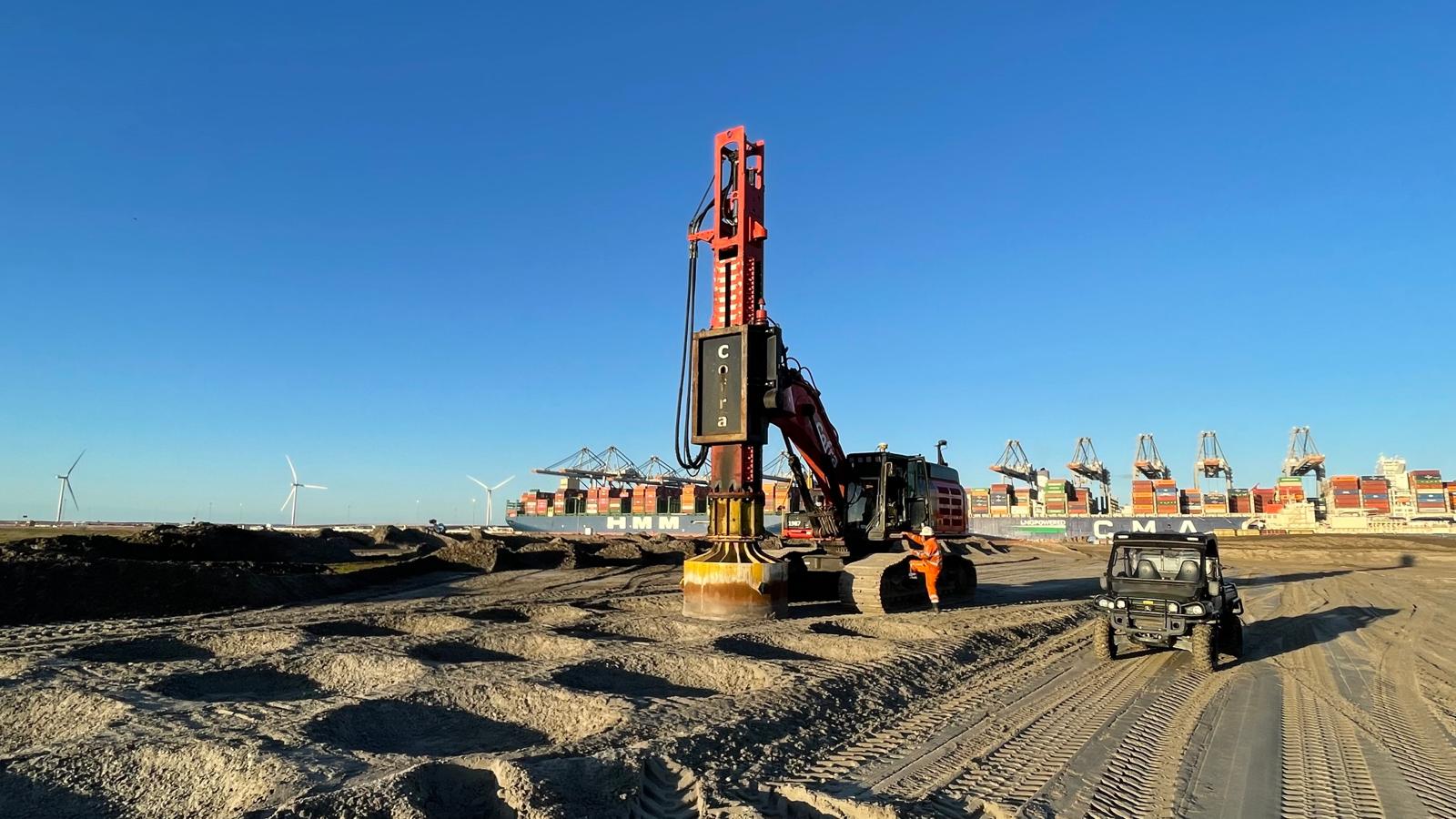

Whatsapp Image 2025 01 10 At 10.06.06 6D7823b2

Why is soil densification required?

Soil densification is required when loose granular soils do not provide the engineering properties needed for the planned development. Loose sands and reclamation fills may experience excessive settlements, limited bearing capacity or an increased susceptibility to liquefaction when subjected to loading.

By increasing the density of the soil, the particles are packed more closely together, resulting in a stronger and stiffer ground structure. This improves the load-settlement behaviour of the soil and allows higher loads to be carried with reduced deformation.

The main reasons for applying ground densification are:

• To increase bearing capacity
• To reduce total and differential settlements
• To improve the performance of foundations and pavements
• To increase the stiffness of the soil
• To mitigate liquefaction risks in seismic regions
• To improve the long-term performance of infrastructure and industrial facilities

Ground densification is commonly applied for ports, airports, warehouse developments, industrial facilities, land reclamations and infrastructure projects where loose granular soils require improvement before construction can commence.

Not all loose soils require treatment. The decision to densify the soil is typically based on project requirements rather than soil density alone. In many cases, densification is selected because it offers the most economical way to achieve the required bearing capacity, settlement performance or liquefaction resistance. The need for compaction depends on the soil conditions, the planned loading, settlement requirements and project objectives. A geotechnical assessment is therefore required to determine whether densification is necessary and which compaction technique is most suitable.

Read more about Cofra Dynamic Compaction
Read more about Vibro Compaction
Return to the knowledge center Compaction

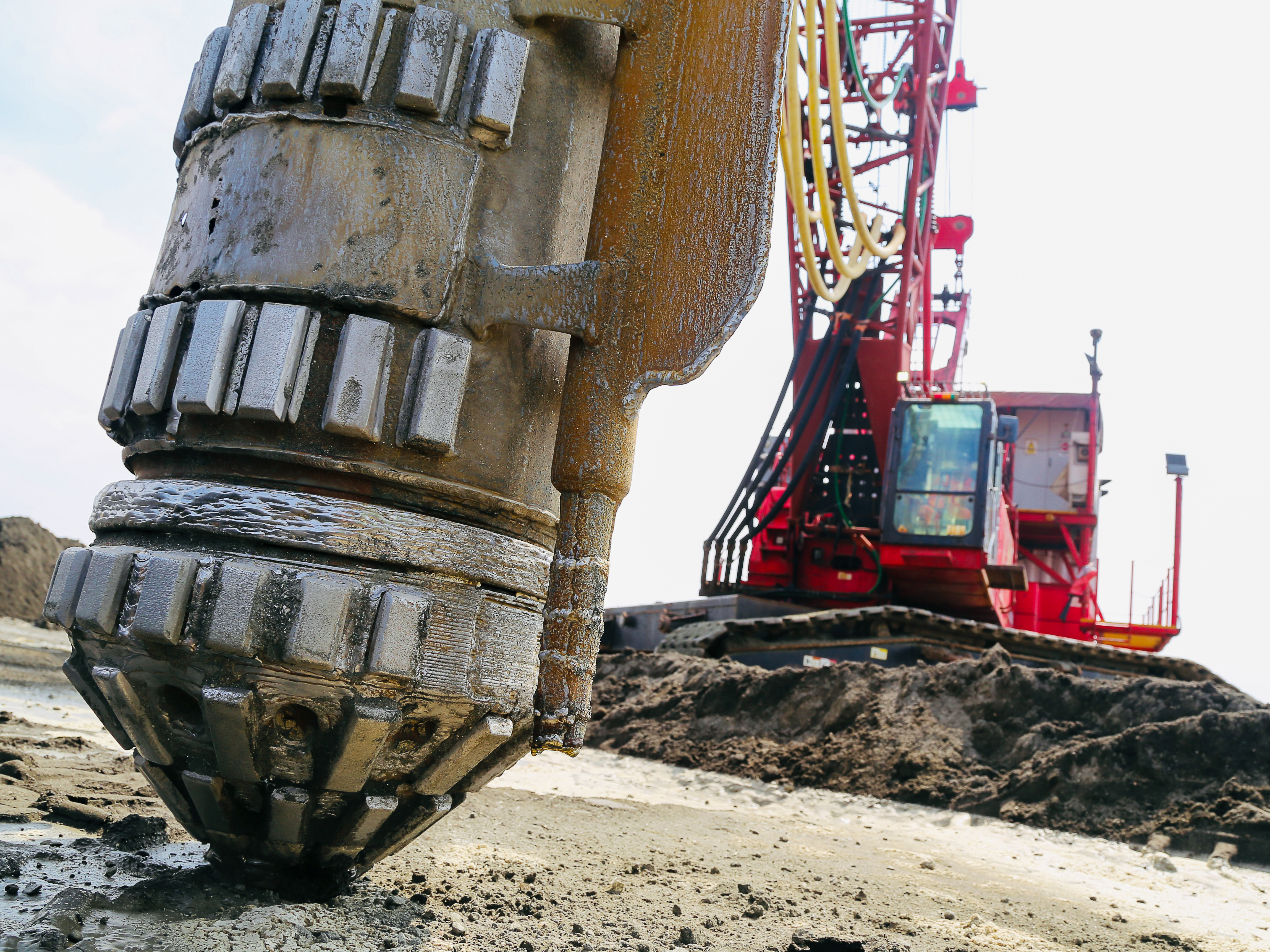

Boven Foto 7 (1)

How do compaction techniques improve soil performance?

Compaction techniques improve soil performance by increasing the density of loose granular soils. Through the application of vibration, impact energy or a combination of both, the soil particles are rearranged into a denser and more stable configuration. As the void ratio decreases, the interaction between individual soil particles improves, resulting in stronger and stiffer ground.

The improvement in density leads to several beneficial changes in soil behaviour:

• Increased bearing capacity
• Reduced total and differential settlements
• Increased soil stiffness
• Improved load-settlement behaviour
• Reduced susceptibility to liquefaction
• Improved long-term performance of foundations, pavements and infrastructure

The degree of improvement depends on factors such as the initial soil density, particle grading, groundwater conditions, treatment depth and the compaction technique used.

Compaction techniques are particularly effective in loose granular materials such as sands, hydraulic fills and reclamation materials. In these soils, the applied energy enables the particles to rearrange into a denser packing, thereby improving the engineering properties of the ground.

It should be noted that there are practical limits related to the fines content of the soil. Compaction techniques generally perform best in clean to slightly silty sands. As a rule of thumb, fines contents in excess of approximately 10 to 15% may reduce the effectiveness of the treatment, although the exact limit depends on the soil characteristics and the compaction method used. Higher fines contents typically require more energy to achieve the same level of improvement and may result in greater deviations from standard design correlations and performance predictions.

Unlike reinforcement techniques, which introduce structural elements into the soil, compaction techniques improve the existing soil itself. As a result, they often provide an economical solution for large treatment areas where increased bearing capacity, reduced settlements or liquefaction mitigation are required.

Read more about Cofra Dynamic Compaction
Read more about Vibro Compaction
Return to the knowledge center Compaction

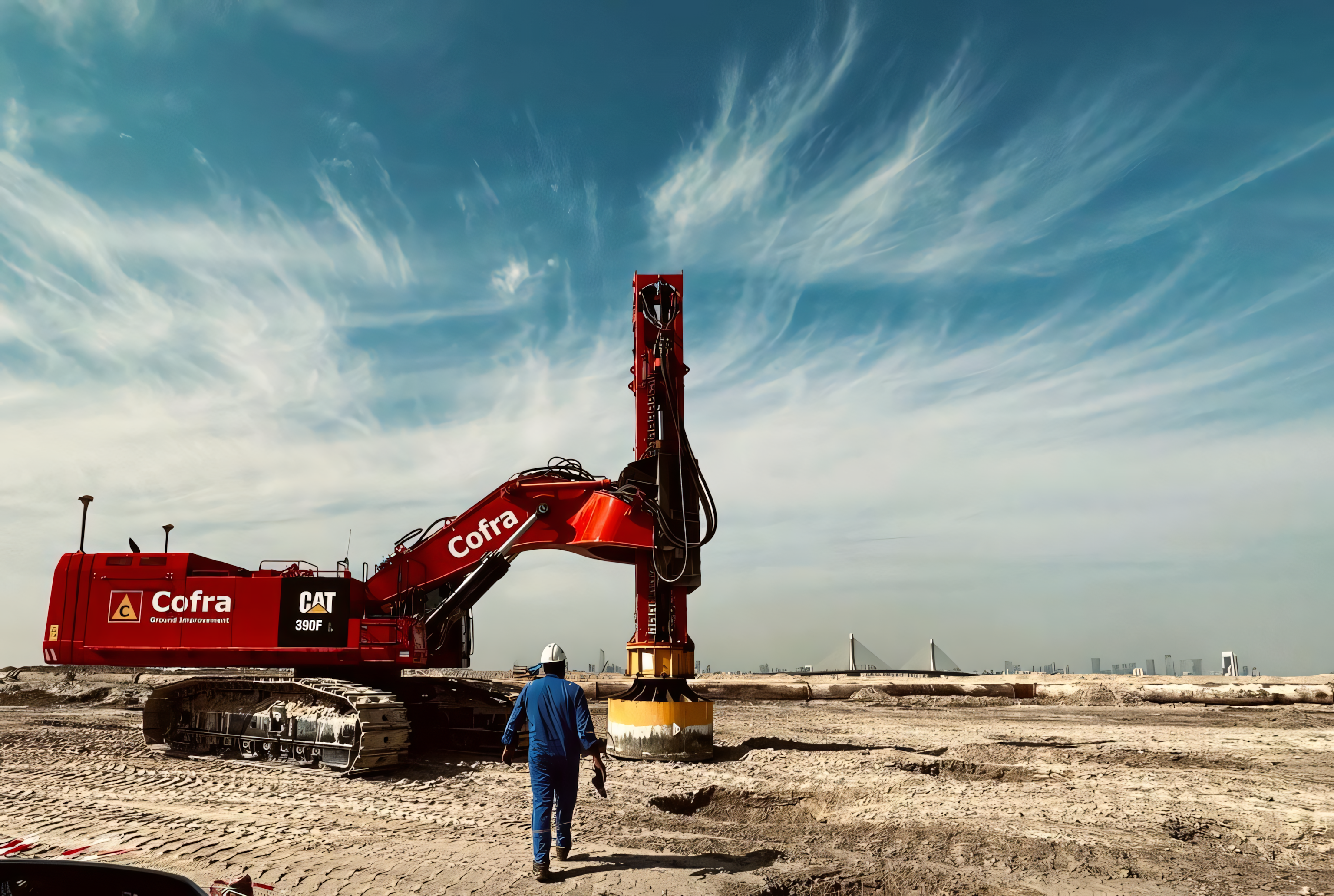

Whatsapp Image 2023 03 09 At 17.02.56 Upscayl 3X Ultramix Balanced 4X

Which soil types are suitable for ground compaction and which are not?

Ground compaction techniques are most effective in loose granular soils where the soil particles can be rearranged into a denser configuration when subjected to vibration or impact energy without the generation of high excess pore pressures. Typical examples include sands, gravelly sands, hydraulic fills and granular reclamation materials.

The best results are generally achieved in clean sands and slightly silty sands with sufficient permeability (smaller than 10-15%). These soils allow the applied energy to be transferred efficiently through the ground, enabling the particles to move into a denser packing arrangement whilst having sufficient permeability to dissipate the displaced pore water.

Suitable soil types typically include:

• Loose sands
• Sand fills
• Hydraulic reclamation fills
• Gravelly sands
• Sandy dredged materials
• Granular mine tailings

The effectiveness of compaction decreases as the fines content increases. Silty soils with moderate fines contents can often still be treated, but may require additional energy or alternative design approaches. As a rule of thumb, compaction techniques perform best when the fines content remains below approximately 10 to 15%, although the acceptable range depends on the soil properties and the selected compaction method.

Compaction techniques are not suitable for cohesive soils such as clay and peat. In these materials, particle rearrangement is limited and consolidation-based techniques such as Vertical Drains or Vacuum Consolidation are often more effective.

The suitability of a compaction technique should always be assessed using site investigation data, such as CPTs, boreholes and laboratory testing. Factors such as soil density, grading, fines content, groundwater conditions and treatment depth can all influence the achievable improvement.

Read more about Cofra Dynamic Compaction
Read more about Vibro Compaction
Return to the knowledge center Compaction

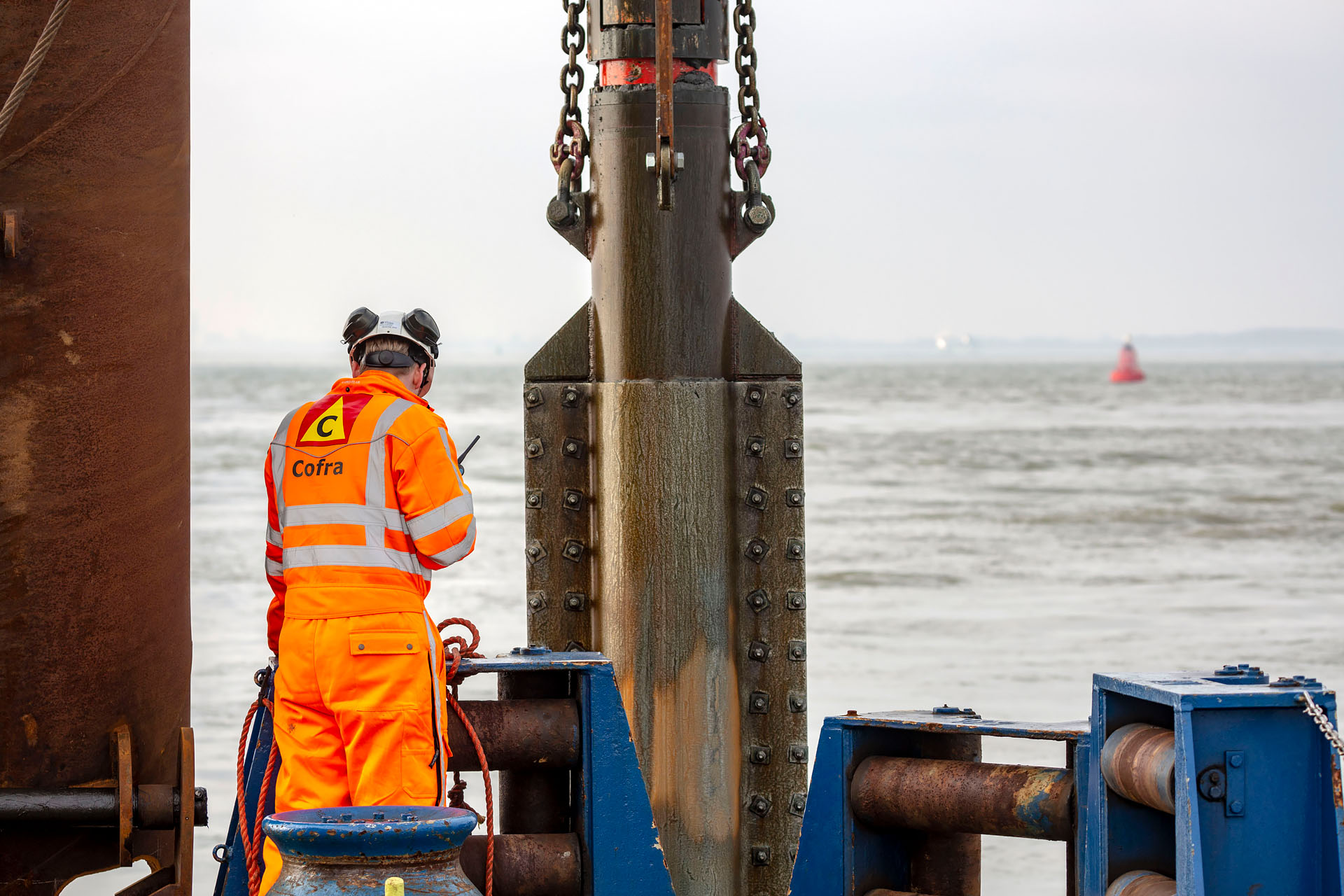

190205 46

Can compaction mitigate liquefaction?

Yes, provided the soil conditions are suitable.

Compaction is one of the most commonly used methods for mitigating liquefaction in loose saturated granular soils. By increasing the density of the soil, its resistance to cyclic loading is improved and the risk of excess pore water pressure build-up during an earthquake is reduced.

Liquefaction occurs when loose saturated sands temporarily lose strength due to the generation of excess pore water pressures during cyclic loading, such as earthquakes. As the soil becomes denser, the particles form a more stable structure and are less likely to experience the volume changes that contribute to liquefaction triggering.

Not all liquefiable soils can be treated using the same technique. Shallow liquefiable layers can often be treated effectively using surface compaction methods such as CDC or CRC, while deeper deposits may favour Vibro Compaction or other specialist ground improvement techniques. The most suitable solution is therefore generally determined through a project-specific geotechnical and seismic assessment and depends on the soil conditions and the required treatment depth.

In many projects, liquefaction mitigation is not aimed at completely eliminating liquefaction, but rather at reducing the liquefaction risk to an acceptable level by increasing soil density and improving the overall behaviour of the ground.

The effectiveness of the treatment is typically verified through field testing before and after compaction. Depending on the project and local practice, this may include CPTs, SPTs, shear wave velocity measurements or other geotechnical investigations used to demonstrate the achieved improvement.

Read more about Cofra Dynamic Compaction
Read more about Vibro Compaction
Return to the knowledge center Compaction
